AC Single Double Inlet Blower

AC Single Double Inlet Blower

Ø108x158mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA108158V2M-L	230	50/60	0.18/0.25	33/35	56/58	1850/2200	1/500

Dimension:


Performance:


AC Single Double Inlet Blower

Ø120x174mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA120174V1H-L	115	50/60	0.7/0.8	76/95	56/60	2400/2500	8/250
CTBA120174V2H-L	230	50/60	0.42/0.48	80/100	56/60	2400/2500	2.2/500
CTBA120174V3H-L	380	50	0.3	105	56	2400	-

Dimension:


Performance:


AC Single Double Inlet Blower

Ø133x175mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA133175V1H-L	115	50/60	0.55/0.7	78/100	62/64	2400/2600	8/250
CTBA133175V2H-L	230	50/60	0.45/0.55	80/100	62/64	2400/2600	2.2/500
CTBA133175V3H-L	380	50	0.15	40	62	2400	-

Dimension:


Performance:


AC Single Double Inlet Blower

Ø120x160mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA120160V1H-L	115	50/60	0.7/0.8	80/90	56/60	2500/2600	8/250
CTBA120160V2H-L	230	50/60	0.42/0.48	80/100	56/60	2500/2600	2.2/630
CTBA120160V3H-L	380	50	0.3	105	56	2400	-

Dimension:


Performance:


AC Single Double Inlet Blower

Ø133x175mm -B Type

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional

Ø133x175mm -B Type-1.jpg

Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTSB133175V1H-L2	115	50/60	1.5/1.7	140/170	61/63	2550/2750	10/500
CTSB133175V2H-L2	230	50/60	0.5/0.6	110/130	61/63	2550/2750	4/500

Dimension:

Ø133x175mm -B Type-2.jpg

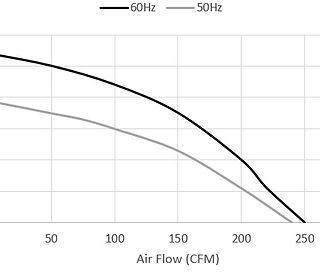

Performance:

Ø133x175mm -B Type-3.jpg

AC Single Double Inlet Blower

Ø140x220mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA140220V2M-L	230	50/60	0.52/0.56	160/190	60/59	1750/1610	4/500

Dimension:


Performance:


AC Single Double Inlet Blower

Ø150x210mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA150210V1H-L	115	50/60	1.68/2	180/220	68/70	2400/2500	20/250
CTBA150210V2H-L	230	50/60	0.68/0.9	150/200	68/70	2400/2500	4/4500
CTBA150210V3H-L	380	50/60	1.1/1.2	132/246	68/70	2400/2500	4/4500

Dimension:


Performance:


AC Single Double Inlet Blower

Ø160x220mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA160220V1M-L	115	50/60	1.3/1.57	170/207	65/68	1800/2200	20/250
CTBA160220V2M-L	230	50/60	0.63/0.73	130/175	65/68	1800/2200	4/630

Dimension:


Performance:


AC Single Double Inlet Blower

Ø180x261mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA180261V1L-A	115	50/60	1.7/1.4	130/160	65/67	1350/1550	24/450
CTBA180261V2L-A	220	50/60	0.6/0.9	135/180	65/67	1350/1550	5/500
CTBA180261V3L-A	380	50/60	0.3/0.25	135/155	65/67	1350/1550	-

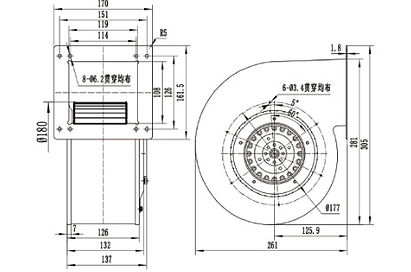

Dimension:


Performance:


AC Single Double Inlet Blower

Ø97x126mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA97126V2L-L	230	50/60	0.38/0.42	80/90	53/52	1550/1450	2.2/500

Dimension:


Performance:


AC Single Double Inlet Blower

Ø120x159mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA120159V2H-L	230	50/60	0.61/0.73	127/168	66	2400	4/630

Dimension:


Performance:


AC Single Double Inlet Blower

Ø120x126mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA120126V2L-L	230	50/60	0.38/0.42	80/90	53/52	1550/1450	2.2/500

Dimension:


Performance:


AC Single Double Inlet Blower

Ø130x202mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA133202V1L-L	115	60	1.5	200	56	1350	20/450
CTBA133202V2L-L	230	50/60	0.8/1.3	180/220	58/59	1350/1150	5/500
CTBA133202V3L-L	380	50	0.3	100	55	1350	-
CTBA133202V4L-L	440	50	0.3	100	56	1350	-

Dimension:


Performance:


AC Single Double Inlet Blower

Ø133x172mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA133172V2L-L	230	50/60	0.85/0.95	190/220	56/59	1550/1800	5/500
CTBA133172V3L-L	380	50	0.42	115	56	1550	-

Dimension:


Performance:


AC Single Double Inlet Blower

Ø160x225mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA160225V2L-L	230	50	1.1	241	60	1400	5/500
CTBA160225V2L-L	230	50	0.9	185	55	1150	5/500
CTBA160225V2L-L	230	50	0.7	137	51	800	5/500

Dimension:


Performance:


AC Single Double Inlet Blower

Ø146x250mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF
CTBA146250V1L-L	115	60	3	300	66	1800	25/450
CTBA146250V2L-L	230	50	1.2	300	66	1800	10/500

Dimension:


Performance:


AC Single Double Inlet Blower

Ø146x202mm

Material: Metal
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Capacitor	Curve
	VAC	Hz	Amp	Watt	dB(A)	RPM	µF	Curve
CTBA146202V2L-L	230	50	1.1	222	62	1250	5/500	①
CTBA146202V2LR-L	230	50	1.25	274	67	1450	8/500	②
CTBA146202V2LW-L	230	50	1.5	331	69	1650	8/500	③

Dimension:


Performance:
