EC Backward Centrifugal Fan

Ø310x202mm

EC Backward Centrifugal Fan

Ø133x110mm

Impeller: Plastic PA66+GF
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE133110V2HR-M	230	50/60	0.33	48	75	4480	460	475

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø175x95mm

Impeller: Plastic PA66+GF
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE17595V2HR-M	230	50/60	0.85	105	76	4460	810	744

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø190x95mm

Impeller: Plastic PA66+GF
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE19095V2H-M	230	50/60	0.7	93	72	3570	795	686

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø190x95mm -B Type

Impeller: Plastic PA66+GF
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional

Ø190x95mm -B Type-1.jpg

Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE19095V2HR-M2	230	50/60	1	140	74	4000	800	882

Dimension:

Ø190x95mm -B Type-2.jpg

Performance:

Ø190x95mm -B Type-3.jpg

EC Backward Centrifugal Fan

Ø220x97mm

Impeller: Plastic PA66+GF
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE22097V2H-M	230	50/60	0.8	95	71	3060	1080	648

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø220x93mm

Impeller: Plastic PA66+GF
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE22093V2H-M	230	50/60	1.18	170	76	3600	1100	840

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø225x125mm

Impeller: Plastic PA66+GF
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE225125V2M-M	230	50/60	0.4	55	66	2200	1065	347

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø225x123mm

Impeller: Plastic PA66+GF
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE225123V2H-M	230	50/60	1.04	135	71	3020	1340	705

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø250x111mm

Impeller: Plastic PA66+GF
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE250111V2M-M	230	50/60	0.9	123	71	2760	1290	690

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø250x118mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE250118V2M-M	230	50/60	1.13	155	75	2780	1700	716

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø250x157mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE250157V2H-M	230	50/60	1.72	387	80	3550	2060	1030

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø280x115mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE280115V2M-M	230	50/60	1.7	230	74	2700	1930	740

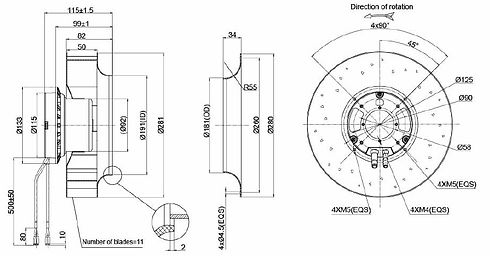

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø280x144mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE280144V2M-M	230	50/60	0.9	120	72	2000	2100	460

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø280x173mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE280173V2M-M	230	50/60	1.75	390	80	2760	2800	895

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø280x225mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE280225V3M-M	380	50/60	1.1	780	82	2850	2950	1000

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø310x170mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE310170V2M-M	230	50/60	1.8	420	78	2680	2740	992

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø310x139mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE310139V2M-M	230	50/60	1.15	167	68	2050	2310	640

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø310x173mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE310173V2L-M	230	50/60	0.95	135	64	1630	2300	394

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø310x238mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class F
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE310238V3M-M	380	50/60	1.64	980	74	2600	4300	1000

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø310x202mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE310202V2M-M	230	50/60	1.5	350	73	2300	2690	660

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø355x209mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE355209V2M-M	230	50/60	1.6	357	76	2050	3270	820

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø355x233mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE355233V2L-M	230	50/60	2.02	467	73	1930	3720	740

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø355x277mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE355277V3M-M	380	50/60	2.8	1500	89	2500	5400	1300

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø400x207mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE400207V2L-M	230	50/60	1.3	280	72	1500	3410	545

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø400x230mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE400230V2L-M	230	50/60	1.3	300	72	1360	3800	560

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø400x277mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE400277V3L-M	380	50/60	1.2	720	73	1580	5400	530

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø450x301mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE450301V2L-M	230	50/60	4.3	1030	76	1700	8050	800

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø450x309mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE450309V2L-M	230	50/60	3.3	700	84	1450	7100	580

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø500x328mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE500328V2LR-M	230	50/60	3.2	1125	66	710	7400	400

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø500x326mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE500326V2L-M	380	50/60	1.46	870	71	1100	8000	450

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø560x354mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure
	VAC	Hz	Amp	Watt	dB(A)	RPM	M3/H	Pa
CTE560354V3LR-M	380	50/60	1.3	770	69	850	9100	320

Dimension:


Performance:


EC Backward Centrifugal Fan

Ø630x376mm

Impeller: Metal Sheet
Protection: IP44
Insulation: Class B
Certification: CE, RoHS
Additional functions are optional


Model	Voltage	Frequency	Current	Power	Noise	Speeed	Max Air Flow	Max Pressure

CTE630376V3L-M	380	50/60	4.4	2700	85	1250	18500	890

Dimension:


Performance:


bottom of page
