AC Cross Flow Fan

AC Cross Flow Fan

Ø30

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 30-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA30530-M	230	50	0.14	17	100	2400	18	33
FLA30610-M	230	50	0.15	17	115	2400	18	32
FLA30718-M	230	50	0.15	18	120	2400	18	35
FLA30800-M	230	50	0.15	18	110	2400	17	35
FLA30854-M	230	50	0.15	18	135	2400	17	36
FLA30920-M	230	50	0.15	18	145	2400	17	36
FLA30986-M	230	50	0.15	18	170	2400	17	38

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA30530-M	530	540	605	Ⓐ
FLA30610-M	610	620	685	Ⓑ
FLA30718-M	718	728	793	Ⓒ
FLA30800-M	800	810	875	Ⓓ
FLA30854-M	854	864	929	Ⓔ
FLA30920-M	920	930	995	Ⓕ
FLA30986-M	986	996	1061	Ⓖ

Dimension:

AC Cross Flow Fan - 30-2.jpg

Performance:

AC Cross Flow Fan - 30-3.jpg

AC Cross Flow Fan

Ø30 -B Type

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 30B-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA30198-M2	230	50	0.1	12	34	2600	7.5	30
FLA30248-M2	230	50	0.12	13	43	2600	7.5	32
FLA30300-M2	230	50	0.12	12	52	2600	7.3	34
FLA30352-M2	230	50	0.11	11.2	58	2600	7.5	36
FLA30420-M2	230	50	0.08	11.5	70	2600	7.2	36

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA30198-M2	198	208	263	Ⓐ
FLA30248-M2	248	258	313	Ⓑ
FLA30300-M2	300	310	365	Ⓒ
FLA30352-M2	352	362	417	Ⓓ
FLA30420-M2	420	430	485	Ⓔ

Dimension:

AC Cross Flow Fan - 30B-2.jpg

Performance:

AC Cross Flow Fan - 30B-3.jpg

AC Cross Flow Fan

Ø30 -C Type

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 30C-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA3098V1-M3	115	60	0.25	15.3	25	3300	11	31
FLA3098V2-M3	230	50	0.11	13.5	20	2700	10	31
FLA30160V1-M3	115	60	0.25	16.5	48	3200	11	32
FLA30160V2-M3	230	50	0.11	13.4	41	2700	10	32
FLA30198V1-M3	115	60	0.25	15.8	60	3100	13	32
FLA30198V2-M3	230	50	0.11	13.7	50	2600	10	32
FLA30248V1-M3	115	60	0.25	15.8	60	3100	13	32
FLA30248V2-M3	230	50	0.11	14.4	62	2500	10	32

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA30300V1-M3	115	60	0.25	16.7	90	2900	15	34
FLA30300V2-M3	230	50	0.11	14.4	81	2500	13	33
FLA30352V1-M3	115	60	0.26	16.9	106	2780	15	35
FLA30352V2-M3	230	50	0.14	14.4	96	2500	14	35
FLA30420V1-M3	115	60	0.27	19.5	110	2500	15	36
FLA30420V2-M3	230	50	0.15	17.5	110	2500	15	36

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA3098V1-M3	98	108	158	Ⓐ
FLA3098V2-M3	98	108	158	Ⓐ
FLA30160V1-M3	160	170	222	Ⓑ
FLA30160V2-M3	160	170	222	Ⓑ
FLA30198V1-M3	198	208	258	Ⓒ
FLA30198V2-M3	198	208	258	Ⓒ
FLA30248V1-M3	248	258	308	Ⓓ
FLA30248V2-M3	248	258	308	Ⓓ
FLA30300V1-M3	300	310	360	Ⓔ
FLA30300V2-M3	300	310	360	Ⓔ
FLA30352V1-M3	352	362	412	Ⓕ
FLA30352V2-M3	352	362	412	Ⓕ
FLA30420V1-M3	420	430	480	Ⓖ
FLA30420V2-M3	420	430	480	Ⓖ

Dimension:

AC Cross Flow Fan - 30C-2.jpg

Performance:

AC Cross Flow Fan - 30C-3.jpg

AC Cross Flow Fan

Ø40

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 40-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA40530V2-M	230	50	0.16	20	140	2000	19	36
FLA40610V2-M	230	50	0.16	20	150	1950	19	35
FLA40700V2-M	230	50	0.16	21	155	1750	18	34
FLA40800V2-M	230	50	0.14	16	205	2300	18	36
FLA40854V2-M	230	50	0.14	16	209	2200	18	37
FLA40920V2-M	230	50	0.18	17	222	2100	18	37
FLA401055V2-M	230	50	0.22	17	255	2100	18	38

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA40530V2-M	530	540	600	Ⓐ
FLA40610V2-M	610	620	680	Ⓑ
FLA40700V2-M	700	710	770	Ⓒ
FLA40800V2-M	800	810	870	Ⓓ
FLA40854V2-M	854	864	924	Ⓔ
FLA40920V2-M	920	930	990	Ⓕ
FLA401055V2-M	1055	1065	1125	Ⓖ

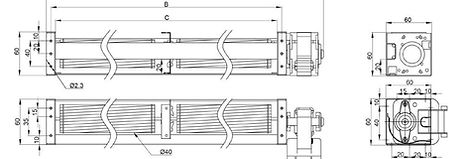

Dimension:

AC Cross Flow Fan - 40-2.jpg

Performance:

AC Cross Flow Fan - 40-3.jpg

AC Cross Flow Fan

Ø40 -B Type

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 40B-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA4098V1-M2	115	60	0.23	16.2	40	3200	25	35
FLA4098V2-M2	230	50	0.1	13.9	36	2700	20	35
FLA40160V1-M2	115	60	0.24	16.8	62	3000	24	36
FLA40160V2-M2	230	50	0.11	14.6	57	2500	19	36
FLA40198V1-M2	115	60	0.25	17.2	77	2900	24	36
FLA40198V2-M2	230	50	0.11	14.5	68	2400	19	36
FLA40250V1-M2	115	60	0.32	21.9	98	3000	24	38
FLA40250V2-M2	230	50	0.13	18.5	90	2500	19	37

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA40300V1-M2	115	60	0.33	22.6	113	2800	23	39
FLA40300V2-M2	230	50	0.13	18.7	106	2400	19	38
FLA40348V1-M2	115	60	0.3	20.5	152	2900	24	39
FLA40348V2-M2	230	50	0.14	19.6	132	2500	19	37
FLA40420V1-M2	115	60	0.31	21.6	170	2700	22	38
FLA40420V2-M2	230	50	0.14	20	163	2500	19	37

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA4098V1-M2	98	108	158	Ⓐ
FLA4098V2-M2	98	108	158	Ⓐ
FLA40160V1-M2	160	170	220	Ⓑ
FLA40160V2-M2	160	170	220	Ⓑ
FLA40198V1-M2	198	208	258	Ⓒ
FLA40198V2-M2	198	208	258	Ⓒ
FLA40250V1-M2	250	260	315	Ⓓ
FLA40250V2-M2	250	260	315	Ⓓ
FLA40300V1-M2	300	310	365	Ⓔ
FLA40300V2-M2	300	310	365	Ⓔ
FLA40348V1-M2	348	358	418	Ⓕ
FLA40348V2-M2	348	358	418	Ⓕ
FLA40420V1-M2	420	430	490	Ⓖ
FLA40420V2-M2	420	430	490	Ⓖ

Dimension:

AC Cross Flow Fan - 40B-2.jpg

Performance:

AC Cross Flow Fan - 40B-3.jpg

AC Cross Flow Fan

Ø43

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 43-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA4398V1-M	115	60	0.25	16	48	3100	22	37
FLA4398V2-M	230	50	0.12	14	41	2600	18	37
FLA43160V1-M	115	60	0.26	17	72	2900	22	38
FLA43160V2-M	230	50	0.12	15	61	2400	16	38
FLA43198V1-M	115	60	0.26	17	86	2800	22	39
FLA43198V2-M	230	50	0.12	15	70	2300	14	38
FLA43250V1-M	115	60	0.37	22	110	2400	21	39
FLA43250V2-M	230	50	0.15	19	90	2400	15	38

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA43300V1-M	115	60	0.38	23	135	2700	21	40
FLA43300V2-M	230	50	0.16	19	115	2300	11	37
FLA43348V1-M	115	60	0.34	21	150	2700	19	41
FLA43348V2-M	230	50	0.18	21	130	2400	15	39
FLA43420V1-M	115	60	0.35	22	170	2700	20	42
FLA43420V2-M	230	50	0.18	20	145	2300	11	40

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA4398V1-M	98	108	158	Ⓐ
FLA4398V2-M	98	108	158	Ⓐ
FLA43160V1-M	160	170	218	Ⓑ
FLA43160V2-M	160	170	218	Ⓑ
FLA43198V1-M	198	208	265	Ⓒ
FLA43198V2-M	198	208	265	Ⓒ
FLA43250V1-M	250	260	316	Ⓓ
FLA43250V2-M	250	260	316	Ⓓ
FLA43300V1-M	300	310	370	Ⓔ
FLA43300V2-M	300	310	370	Ⓔ
FLA43348V1-M	340	358	417	Ⓕ
FLA43348V2-M	348	358	417	Ⓕ
FLA43420V1-M	420	430	491	Ⓖ
FLA43420V2-M	420	430	491	Ⓖ

Dimension:

AC Cross Flow Fan - 43-2.jpg

Performance:

AC Cross Flow Fan - 43-3.jpg

AC Cross Flow Fan

Ø45

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 45-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA45530V2-M	230	50	0.28	39	374	2100	26	51
FLA45630V2-M	230	50	0.29	40	384	2000	28	50
FLA45700V2-M	230	50	0.29	41	355	1700	24	47
FLA45750V2-M	230	50	0.4	55	495	2000	28	51
FLA45820V2-M	230	50	0.4	55	480	1800	27	50
FLA45870V2-M	230	50	0.4	56	505	1700	27	49

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA45530V2-M	530	540	602	Ⓐ
FLA45630V2-M	630	640	702	Ⓑ
FLA45700V2-M	700	710	777	Ⓒ
FLA45750V2-M	750	760	842	Ⓓ
FLA45820V2-M	820	830	912	Ⓔ
FLA45870V2-M	870	880	962	Ⓕ

Dimension:

AC Cross Flow Fan - 45-2.jpg

Performance:

AC Cross Flow Fan - 45-3.jpg

AC Cross Flow Fan

Ø48

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 48-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA48572V2-M	230	50	0.31	43	370	2300	34	42
FLA48694V2-M	230	50	0.33	46	350	2100	33	40
FLA48784V2-M	230	50	0.34	47	280	1500	28	38
FLA48750V2-M	230	50	0.34	47	270	1350	25	36

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA48572V2-M	572	208	584	Ⓐ
FLA48694V2-M	694	269	706	Ⓑ
FLA48784V2-M	784	314	796	Ⓒ
FLA48750V2-M	750	384	936	Ⓓ

Dimension:

AC Cross Flow Fan - 48-2.jpg

Performance:

AC Cross Flow Fan - 48-3.jpg

AC Cross Flow Fan

Ø48 -B Type

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 48B-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA4899V2-M2	230	50	0.06	7.5	64	1800	30	36
FLA48150V2-M2	230	50	0.18	11	81	1600	28	33
FLA48189V2-M2	230	50	0.16	18	105	1500	26	32
FLA48240V2-M2	230	50	0.25	29	168	2400	40	46
FLA48252V2-M2	230	50	0.26	29	213	2400	40	46
FLA48303V2-M2	230	50	0.28	30	264	2000	35	40
FLA48348V2-M2	230	50	0.29	35	307	2200	38	43
FLA48418V2-M2	230	50	0.32	35	343	2000	35	44
FLA48418V2-M2	230	50	0.32	35	343	2000	35	44

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA4899V2-M2	99	66	150	Ⓐ
FLA48150V2-M2	150	114	200	Ⓑ
FLA48189V2-M2	189	154	246	Ⓒ
FLA48240V2-M2	240	206	298	Ⓓ
FLA48252V2-M2	252	216	310	Ⓔ
FLA48303V2-M2	303	269	361	Ⓕ
FLA48348V2-M2	348	314	413	Ⓖ
FLA48418V2-M2	418	384	493	Ⓗ

Dimension:

AC Cross Flow Fan - 48B-2.jpg

Performance:

AC Cross Flow Fan - 48B-3.jpg

AC Cross Flow Fan

Ø50

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 50-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA50612V2-M	230	50	0.29	36	300	2400	36	42
FLA50712V2-M	230	50	0.32	40	335	2100	32	41
FLA50832V2-M	230	50	0.35	41	340	1800	30	38
FLA50952V2-M	230	50	0.35	42	260	1300	28	36

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA50612V2-M	612	258	632	Ⓐ
FLA50712V2-M	712	308	732	Ⓑ
FLA50832V2-M	832	368	852	Ⓒ
FLA50952V2-M	952	428	972	Ⓓ

Dimension:

AC Cross Flow Fan - 50-2.jpg

Performance:

AC Cross Flow Fan - 50-3.jpg

AC Cross Flow Fan

Ø50 -B Type

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 50B-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA5098V1-M2	115	60	0.45	27.2	70	3300	44	40
FLA5098V2-M2	230	50	0.23	25.2	56	2800	37	40
FLA50158V1-M2	115	60	0.47	30.1	131	3100	41	40
FLA50158V2-M2	230	50	0.24	25.9	115	2700	37	40
FLA50198V1-M2	115	60	0.48	32.1	174	2900	40	42
FLA50198V2-M2	230	50	0.24	28.2	158	2600	38	42
FLA50248V1-M2	115	60	0.5	33.5	205	3000	42	44
FLA50248V2-M2	230	50	0.25	30.6	128	2600	39	42

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA50298V1-M2	115	60	0.52	34.5	234	2900	45	45
FLA50298V2-M2	230	50	0.26	31.2	208	2600	40	43
FLA50358V1-M2	115	60	0.92	58	292	3100	49	46
FLA50358V2-M2	230	50	0.46	51	271	2700	44	44
FLA50418V1-M2	115	60	0.96	62.4	337	3000	45	46
FLA50418V2-M2	230	50	0.47	52.4	308	2600	49	44

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA5098V1-M2	98	108	170	Ⓐ
FLA5098V2-M2	98	108	170	Ⓐ
FLA50158V1-M2	158	168	231	Ⓑ
FLA50158V2-M2	158	168	231	Ⓑ
FLA50198V1-M2	198	208	271	Ⓒ
FLA50198V2-M2	198	208	271	Ⓒ
FLA50248V1-M2	248	258	326	Ⓓ
FLA50248V2-M2	248	258	326	Ⓓ
FLA50298V1-M2	298	308	376	Ⓔ
FLA50298V2-M2	298	308	376	Ⓔ
FLA50358V1-M2	358	368	436	Ⓕ
FLA50358V2-M2	358	368	436	Ⓕ
FLA50418V1-M2	418	428	496	Ⓖ
FLA50418V2-M2	418	428	496	Ⓖ

Dimension:

AC Cross Flow Fan - 50B-2.jpg

Performance:

AC Cross Flow Fan - 50B-3.jpg

AC Cross Flow Fan

Ø50 -C Type

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 50C-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA50100V1-M3	115	60	0.37	20.7	60	3200	44	40
FLA50100V2-M3	230	50	0.15	17	50	2700	37	40
FLA50160V1-M3	115	60	0.38	21.6	106	3100	41	40
FLA50160V2-M3	230	50	0.15	17.3	90	2500	37	40
FLA50200V1-M3	115	60	0.38	23.3	150	3000	40	42
FLA50200V2-M3	230	50	0.16	17.6	125	2500	38	42
FLA50250V1-M3	115	60	0.38	19.7	190	3000	42	44
FLA50250V2-M3	230	50	0.18	19.8	153	2600	39	42

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA50300V1-M3	115	60	0.32	20	199	2800	45	45
FLA50300V2-M3	230	50	0.18	19.6	187	2500	40	43
FLA50360V1-M3	115	60	0.33	20.9	225	2700	49	48
FLA50360V2-M3	230	50	0.18	20	216	2500	44	48
FLA50420V1-M3	115	60	0.35	21.1	252	2500	54	52
FLA50420V2-M3	230	50	0.19	21.1	206	2300	49	49

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA50100V1-M3	100	110	163	Ⓐ
FLA50100V2-M3	100	110	163	Ⓐ
FLA50160V1-M3	160	170	223	Ⓑ
FLA50160V2-M3	160	170	223	Ⓑ
FLA50200V1-M3	200	210	263	Ⓒ
FLA50200V2-M3	200	210	263	Ⓒ
FLA50250V1-M3	250	260	318	Ⓓ
FLA50250V2-M3	250	260	318	Ⓓ
FLA50300V1-M3	300	310	368	Ⓔ
FLA50300V2-M3	300	310	368	Ⓔ
FLA50360V1-M3	360	370	428	Ⓕ
FLA50360V2-M3	360	370	428	Ⓕ
FLA50420V1-M3	420	430	488	Ⓖ
FLA50420V2-M3	420	430	488	Ⓖ

Dimension:

AC Cross Flow Fan - 50C-2.jpg

Performance:

AC Cross Flow Fan - 50C-3.jpg

AC Cross Flow Fan

Ø60

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 60-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA60184V2-M	230	50	0.24	28	203	2800	58	46
FLA60245V2-M	230	50	0.13	30	239	2700	58	45
FLA60306V2-M	230	50	0.15	33	331	2700	59	47
FLA60368V2-M	230	50	0.16	35	337	2600	49	49
FLA60429V2-M	230	50	0.17	37	417	2500	40	50

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA60184V2-M	184	199	285	Ⓐ
FLA60245V2-M	245	308	345	Ⓑ
FLA60306V2-M	306	321	405	Ⓒ
FLA60368V2-M	368	383	468	Ⓓ
FLA60429V2-M	429	444	530	Ⓔ

Dimension:

AC Cross Flow Fan - 60-2.jpg

Performance:

AC Cross Flow Fan - 60-3.jpg

AC Cross Flow Fan

Ø60 -B Type

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 60B-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA60123V1-M2	115	60	0.47	30.9	141	3000	47	40
FLA60123V2-M2	230	50	0.24	28.5	125	2700	40	40
FLA60184V1-M2	115	60	0.54	34.4	180	2600	54	47
FLA60184V2-M2	230	50	0.25	32.1	166	2500	52	47
FLA60245V1-M2	115	60	0.57	35.8	200	2000	50	41
FLA60123V2-M2	230	50	0.24	28.5	125	2700	40	40
FLA60184V1-M2	115	60	0.54	34.4	180	2600	54	47
FLA60184V2-M2	230	50	0.25	32.1	166	2500	52	47
FLA60245V1-M2	115	60	0.57	35.8	200	2000	50	41
FLA60245V2-M2	230	50	0.27	34	230	2300	45	44
FLA60245V2-M2	230	50	0.27	34	230	2300	45	44
FLA60123V1-M2	115	60	0.47	30.9	141	3000	47	40

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA60123V1-M2	115	60	0.47	30.9	141	3000	47	40
FLA60123V2-M2	230	50	0.24	28.5	125	2700	40	40
FLA60184V1-M2	115	60	0.54	34.4	180	2600	54	47
FLA60184V2-M2	230	50	0.25	32.1	166	2500	52	47
FLA60245V1-M2	115	60	0.57	35.8	200	2000	50	41
FLA60123V2-M2	230	50	0.24	28.5	125	2700	40	40
FLA60184V1-M2	115	60	0.54	34.4	180	2600	54	47
FLA60184V2-M2	230	50	0.25	32.1	166	2500	52	47
FLA60245V1-M2	115	60	0.57	35.8	200	2000	50	41
FLA60245V2-M2	230	50	0.27	34	230	2300	45	44
FLA60245V2-M2	230	50	0.27	34	230	2300	45	44
FLA60123V1-M2	115	60	0.47	30.9	141	3000	47	40

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA60123V1-M2	123	138	190	Ⓐ
FLA60123V2-M2	123	138	190	Ⓐ
FLA60184V1-M2	184	199	251	Ⓑ
FLA60184V2-M2	184	199	251	Ⓑ
FLA60245V1-M2	245	260	312	Ⓒ
FLA60245V2-M2	245	260	312	Ⓒ
FLA60306V1-M2	306	321	378	Ⓓ
FLA60306V2-M2	306	321	378	Ⓓ
FLA60382V1-M2	368	382	440	Ⓔ
FLA60382V2-M2	368	382	440	Ⓔ
FLA60429V1-M2	429	444	501	Ⓕ
FLA60429V2-M2	429	444	501	Ⓕ

Dimension:

AC Cross Flow Fan - 60B-2.jpg

Performance:

AC Cross Flow Fan - 60B-3.jpg

AC Cross Flow Fan

Ø60 -C Type

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 60C-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA60578V2-M3	230	50	0.36	40	335	1700	47	40
FLA60710V2-M3	230	50	0.36	40	382	1550	49	42
FLA60810V2-M3	230	50	0.36	41	355	1300	58	45
FLA60940V2-M3	230	50	0.37	41	368	1100	48	48

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA60578V2-M3	578	254	588	Ⓐ
FLA60710V2-M3	710	315	720	Ⓑ
FLA60810V2-M3	810	365	820	Ⓒ
FLA60940V2-M3	940	430	950	Ⓓ

Dimension:

AC Cross Flow Fan - 60C-2.jpg

Performance:

AC Cross Flow Fan - 60C-3.jpg

AC Cross Flow Fan

Ø60 -D Type

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 60D-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA60123V2-M4	230	50	0.15	24	105	2400	50	40
FLA60181V2-M4	230	50	0.34	36	170	2500	54	40
FLA60242V2-M4	230	50	0.34	40	210	2200	51	42
FLA60304V2-M4	230	50	0.32	41	250	2000	48	42
FLA60353V2-M4	230	50	0.34	45	220	1800	45	40
FLA60418V2-M4	230	50	0.34	46	190	1500	42	38

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA60123V2-M4	123	134	191	Ⓐ
FLA60181V2-M4	181	193	259	Ⓑ
FLA60242V2-M4	242	265	335	Ⓒ
FLA60304V2-M4	304	315	397	Ⓓ
FLA60353V2-M4	353	365	446	Ⓔ
FLA60418V2-M4	418	430	511	Ⓕ

Dimension:

AC Cross Flow Fan - 60D-2.jpg

Performance:

AC Cross Flow Fan - 60D-3.jpg

AC Cross Flow Fan

Ø60 -E Type

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 60B-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA60250V2-M5	230	50	0.17	24	159	2600	25	45
FLA60310V2-M5	230	50	0.18	25	208	2500	26	45
FLA60350V2-M5	230	50	0.19	26	234	2400	24	45
FLA60425V2-M5	230	50	0.2	27	276	2300	24	44
FLA60520V2-M5	230	50	0.22	31	315	2400	25	44
FLA60610V2-M5	230	50	0.23	32	355	2300	23	43

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA60750V2-M5	230	50	0.25	34	405	2300	24	43
FLA60870V2-M5	230	50	0.25	35	475	2100	20	42
FLA60920V2-M5	230	50	0.33	46	557	2500	23	44
FLA601080V2-M5	230	50	0.36	50	650	2300	24	44
FLA601300V2-M5	230	50	0.38	52	720	2200	24	45

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA60250V2-M5	250	268	321	Ⓐ
FLA60310V2-M5	310	328	381	Ⓑ
FLA60350V2-M5	350	368	421	Ⓒ
FLA60425V2-M5	425	443	496	Ⓓ
FLA60520V2-M5	520	538	596	Ⓔ
FLA60610V2-M5	610	628	686	Ⓕ
FLA60750V2-M5	750	768	831	Ⓖ
FLA60870V2-M5	870	888	951	Ⓗ
FLA60920V2-M5	920	938	1003	Ⓘ
FLA601080V2-M5	1080	1098	163	Ⓙ
FLA601300V2-M5	1300	1318	1383	Ⓚ

Dimension:

AC Cross Flow Fan - 60B-2.jpg

Performance:

AC Cross Flow Fan - 60B-3.jpg

AC Cross Flow Fan

Ø60 -F Type

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 60F-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	Hz	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA60520V2-M6	50	50	0.15	24	360	1900	50	43
FLA60610V2-M6	50	50	0.34	35	420	1900	50	43
FLA60640V2-M6	50	50	0.19	40	440	1900	50	43
FLA60700V2-M6	50	50	0.19	41	450	1800	48	42
FLA60750V2-M6	50	50	0.2	45	455	1700	46	42
FLA60870V2-M6	50	50	0.21	50	490	1500	46	40

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA60520V2-M6	520	535	600	Ⓐ
FLA60610V2-M6	610	625	690	Ⓑ
FLA60640V2-M6	640	655	720	Ⓒ
FLA60700V2-M6	700	715	780	Ⓓ
FLA60750V2-M6	750	765	830	Ⓔ
FLA60870V2-M6	870	885	950	Ⓕ

Dimension:

AC Cross Flow Fan - 60F-2.jpg

Performance:

AC Cross Flow Fan - 60F-3.jpg

AC Cross Flow Fan

Ø65

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 65-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA65592V2-M	230	50	0.36	42.6	295	1400	13	41
FLA65712V2-M	230	50	0.36	42.6	310	1300	12	42
FLA65832V2-M	230	50	0.36	42.7	340	1250	11	45
FLA65952V2-M	230	50	0.36	42.6	350	1100	11	45

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA65592V2-M	592	252	602	Ⓐ
FLA65712V2-M	712	312	722	Ⓑ
FLA65832V2-M	832	372	842	Ⓒ
FLA65952V2-M	952	432	962	Ⓓ

Dimension:

AC Cross Flow Fan - 65-2.jpg

Performance:

AC Cross Flow Fan - 65-3.jpg

AC Cross Flow Fan

Ø65 -B Type

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 65B-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA65190V2-M2	230	50	0.25	35	254	1900	36	46
FLA65242V2-M2	230	50	0.28	38	262	1500	30	45
FLA65302V2-M2	230	50	0.3	42	302	1300	27	42
FLA65362V2-M2	230	50	0.33	45	355	1200	25	41

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA65190V2-M2	190	200	256	Ⓐ
FLA65242V2-M2	242	252	313	Ⓑ
FLA65302V2-M2	302	312	385	Ⓒ
FLA65362V2-M2	362	372	447	Ⓓ

Dimension:

AC Cross Flow Fan - 65B-2.jpg

Performance:

AC Cross Flow Fan - 65B-3.jpg

AC Cross Flow Fan

Ø65 -C Type

Housing: Metal
Impeller: Aluminum
Protection: Impedance Protection
Certification: CE, RoHS
Additional functions are optional

AC Cross Flow Fan - 65C-1.jpg

Model	Voltage	Frequency	Current	Power	Air Flow	Speeed	Pressure	Noise
	VAC	Hz	Amp	Watt	m3/h	RPM	Pa	dB(A)
FLA65520V2-M3	230	50	0.2	40	550	1500	45	36
FLA65620V2-M3	230	50	0.2	42	610	1300	42	35

Model	Air Outlet Length (C)	Pitch Row (B)	Total Length (A)	Curve
	mm	mm	mm
FLA65520V2-M3	520	532	605	Ⓐ
FLA65620V2-M3	620	632	705	Ⓑ

Dimension:

AC Cross Flow Fan - 65C-2.jpg

Performance:

AC Cross Flow Fan - 65C-3.jpg

bottom of page
