DC Gas Blower
DC Gas Blower
Ø118x162mm
-
Housing: Die-cast Aluminum
-
Impeller: Plastic
-
Certification: CE, RoHS
-
Additional functions are optional
Model | Voltage | Current | Power | Speeed | Air Flow | Air Flow | Pressure | Pressure | Noise |
|---|---|---|---|---|---|---|---|---|---|
VDC | Amp | Watt | RPM | CFM | m3/min | mmH2O | inH2O | dB(A) | |
GBD118162V12H-JP | 12 | 5.25 | 63 | 5600 | 55.91 | 1.58 | 219.24 | 8.63 | 65 |
GBD118162V24H-JP | 24 | 2.62 | 63 | 5600 | 55.91 | 1.58 | 219.24 | 8.63 | 65 |

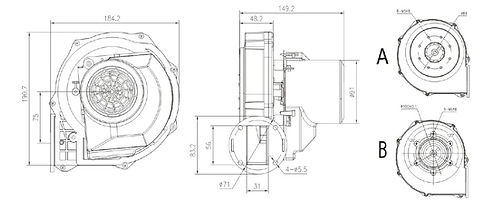

Dimension:
Performance:
