Fan & Blower

Ultra-High-Speed Fan & Blower

30x30x10mm - E Type

Housing: Aluminum
Impeller: Thermoplastic PBT (UL94V-0)
Bearing: Ball Type
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
AXD3010V8H-K5	8.4	0.7	5.88	26000	8.96	0.254	32.5	1.28	51

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

Ø30x36mm

Material: Thermoplastic PBT UL 94V-0
Bearing: Ball Type
Certification: CE, RoHS
Additional functions are optiona

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
AXD3036V6H-K	6	0.07	0.42	14000	4.8	0.14	11.4	0.45	42

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

Ø30x45mm

Material: Thermoplastic PBT UL 94V-0
Bearing: Ball Type
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U3045V2H-K	220 VAC	0.19	43.2	80000	0.628	22.2	328.5	12.96	67
U3045V24H-K	24	1.8	43.2	80000	0.628	22.2	328.5	12.96	67
U3045V12H-K	12	3.6	43.2	80000	0.628	22.2	328.5	12.96	67

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

40x28mm

Material: PC Plastic
Bearing: Ball Type
Certification: CE, RoHS
Additional functions are optiona

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U4028V24H-K	24	2	48	48000	12	0.34	602	23.71	71

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

50x25mm

Housing: Thermoplastic PBT (UL 94V-0)
Impeller: Thermoplastic PBT (UL 94V-0)
Bearing: Ball Type
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U5025V12H-K	12	2.8	33.6	40000	10.09	0.286	538	21.18	70.2
U5025V24H-K	24	1.4	33.6	40000	10.09	0.286	538	21.18	70.2

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

50x25mm-B Type

Housing: Thermoplastic PBT (UL 94V-0)
Impeller: Thermoplastic PBT (UL 94V-0)
Bearing: Ball Type
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U5025V24H-K2	24	1	24	37000	9.5	0.269	412.8	16.25	67

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

Ø54x45mm

Housing: Thermoplastic PBT (UL 94V-0)
Impeller: Thermoplastic PBT (UL 94V-0)
Certification: CE, RoHS
Additional functions are optiona

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U5445V12M-T	12	2.3	27.6	16500	58.5	1.66	178.45	7.02	62.5
U5445V24M-T	24	1.2	27.6	16500	58.5	1.66	178.45	7.02	62.5

Dimension:

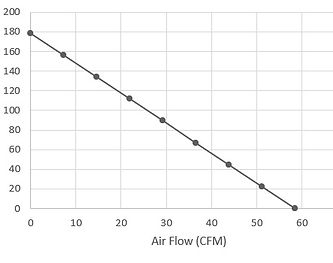

Performance:

Ultra-High-Speed Fan & Blower

65x34mm

Housing: Thermoplastic PBT (UL 94V-0)
Impeller: Thermoplastic PBT (UL 94V-0)
Certification: CE, RoHS
Additional functions are optiona

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U6534V12H-T	12	2.15	25.8	28000	13.8	0.39	469.07	18.47	66.5
U6534V24H-T	24	1.07	25.8	28000	13.8	0.39	469.07	18.47	66.5

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

Ø50x60mm

Housing: Thermoplastic PBT (UL 94V-0)
Impeller: Thermoplastic PBT (UL 94V-0)
Certification: CE, RoHS
Additional functions are optiona


Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U5060V24H-K	24	4.2	100.8	31000	14	0.396	859.5	33.86	71.3

Dimension:


Performance:


Ultra-High-Speed Fan & Blower

65x63x70mm

Housing: Thermoplastic PBT (UL 94V-0)
Impeller: PA66
Certification: CE, RoHS
Additional functions are optiona

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U6570V24HR-K	24	3.1	74.4	48000	18.09	0.512	925.7	36.44	70

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

75x65x45mm

Housing: Thermoplastic PBT (UL 94V-0)
Impeller: Thermoplastic PBT (UL 94V-0)
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U7545V12H-K	12	6	72	17.84	17.84	0.505	721	28.39	71.7
U7545V24H-K	24	3	72	17.84	17.84	0.505	721	28.39	71.7

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

70x65x40mm - B Type

Housing: Plastic
Impeller: Plastic
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U7040V24H-K2	24	3.5	84	37000	18.36	0.52	884.75	34.83	70

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

77x54mm

Housing: Plastic
Impeller: Plastic
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U7754V12H-T	12	5	60	41000	23.6	0.66	654.05	25.75	65
U7754V24H-T	24	2.5	60	41000	23.6	0.66	654.05	25.75	65

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

77x66x57mm

Housing: Thermoplastic PBT (UL 94V-0)
Impeller: Thermoplastic PBT (UL 94V-0)
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U7757V24H-K	24	1.8	43.2	31100	18.71	0.53	519.5	20.45	70

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

77x66x57mm-C Type

Housing: Plastic
Impeller: Plastic
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U7757V24H-K3	24	1.5	36	33000	19.8	0.56	466	18.356	74.1

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

77x66x57mm-D Type

Housing: Plastic
Impeller: Plastic
Certification: CE, RoHS
Additional functions are optiona

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U7757V24H-K4	24	1.5	36	32000	16.8	0.48	488.8	19.25	71.3

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

77x66x57mm -F Type

Housing: Plastic
Impeller: Plastic
Certification: CE, RoHS
Additional functions are optional

77x66x57mm -F-1.jpg

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U7757V24H-K6	24	1.5	36	32000	15.9	0.45	493.3	19.43	71.3

Dimension:

77x66x57mm -F-2.jpg

Performance:

77x66x57mm -F-3.jpg

Ultra-High-Speed Fan & Blower

75x70mm

Housing: Thermoplastic PBT (UL 94V-0)
Impeller: PA66
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U7570V24HR-K	24	2.9	69.6	42000	16.73	0.473	1058.75	41.68	75.1

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

80x35mm

Housing: Plastic
Impeller: Plastic
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U8035V12M-K	12	1.5	18	15000	23.8	0.67	168.9	6.65	63.1
U8035V12H-K	12	4	48	20000	30.6	0.87	350.3	13.8	68.2
U8035V24M-K	24	0.75	18	15000	23.8	0.67	168.9	6.65	63.1
U8035V24H-K	24	2	48	20000	30.6	0.87	350.3	13.8	68.2
U8035V24HR-K	24	2.7	64.8	22000	34.4	0.98	446	17.57	720

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

80x35mm -B Type

Housing: Plastic
Impeller: Plastic
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U8035V12H-K	12	3.3	39.6	18000	26.9	0.76	336.8	13.27	68.4
U8035V24M-K	24	1.65	39.6	18000	26.9	0.76	336.8	13.27	68.4

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

80x60mm

Housing: Thermoplastic PBT UL 94V-0
Impeller: PA66
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U8060V24M-K	24	1.86	44.4	25000	18.4	0.515	497.8	19.6	68.4
U8060V24H-K	24	4.3	103.2	35000	25.4	0.719	1009.5	39.7	70.9
U8060V24HR-K	24	5.4	129.6	37000	28.1	0.795	1119.5	44.1	70.9
U8060V24HH-K	24	8.5	204	44000	33.8	0.967	1681.3	66.2	84.3

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

85x24mm

Housing: PLASTIC PBT (UL 94V-0)
Impeller: PLASTIC PBT (UL 94V-0)
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U8524V12M-T	12	3.2	28.8	17000	23.83	0.816	115.5	4.54	66
U8524V24M-T	24	1.6	28.8	17000	23.83	0.816	115.5	4.54	66

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

85x38mm

Housing: PLASTIC PBT (UL 94V-0)
Impeller: PLASTIC PBT (UL 94V-0)
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U8538V12M-T	12	1	14.8	13000	30	0.85	163.15	6.42	62.5
U8538V24M-T	24	0.5	14.8	13000	30	0.85	163.15	6.42	62.5

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

97x25mm

Housing: PPS
Impeller: PPS
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U9725V5L-K	5	0.58	2.9	8000	15.18	0.43	42.16	1.66	54.8
U9725V24M-K	24	0.67	16.08	14100	28.47	0.806	166.33	6.548	68.5
U9725V24H-K	24	1.55	37.2	20000	37.05	1.047	271.09	9.579	74

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

97x25mm -B Type

Housing: PPS
Impeller: PPS
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U9725V12L-K2	12	0.6	7.2	9000	19.7	0.56	58.2	2.3	59.9
U9725V12M-K2	12	1.5	18	14000	30.9	0.88	153.2	6.03	68.6
U9725V24LR-K2	24	0.3	7.2	9000	1.7	0.56	58.2	2.3	59.9
U9725V24M-K2	24	0.75	18	14000	30.9	0.88	153.2	6.03	68.6

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

120x60mm

Housing: PC on Upper Volute, Aluminum on Lower Volute
Impeller: Aluminum
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U12060V12LW-K	12	0.56	6.7	5000	13	0.368	57.1	2.25	57.1
U12060V12LR-K	12	5	60	11000	26.3	0.744	326.8	12.87	67.4
U12060V12M-K	12	12.4	148.8	15000	37.3	1.056	752	29.61	71.9
U12060V24LW-K	24	0.28	6.7	5000	13	0.368	57.1	2.25	57.1
U12060V24LR-K	24	2.5	60	11000	26.3	0.744	326.8	12.87	67.4
U12060V24M-K	24	6.2	148.8	15000	37.3	1.056	752	29.61	71.9

Dimension:

Performance:

Ultra-High-Speed Fan & Blower

120x60mm -B Type

Housing: Aluminum
Impeller: Aluminum
Certification: CE, RoHS
Additional functions are optional

Model	Voltage	Current	Power	Speeed	Air Flow	Air Flow	Pressure	Pressure	Noise
	VDC	Amp	Watt	RPM	CFM	m3/min	mmH2O	inH2O	dB(A)
U12060V24H-K2	24	6.5	156	15000	67.88	1.92	638	25.13	77.8

Dimension:

Performance:

bottom of page
